Design of Bridges along the Ilishan Ago Igwoye road in Ogun State - Nigeria

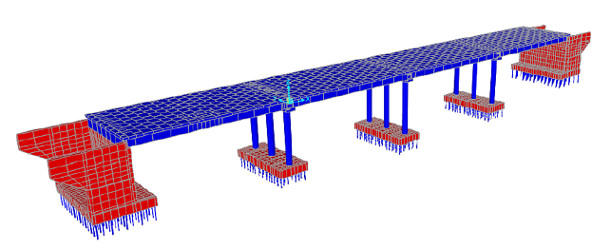

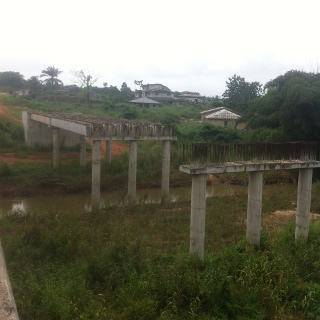

Omi bridge
No. 4 spans with a total length of 80.0 m and a total width of 10.30 m. Static scheme of
continuous deck over the piers and fixed on the abutments. Structures in reinforced
concrete. Foundation on micropiles.

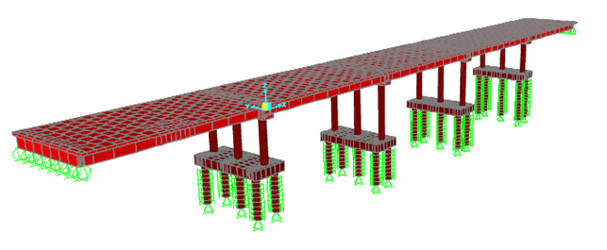

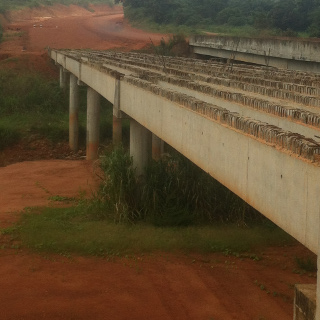

Ona bridge
No. 5 spans with a total length of 100.0 m and a total width
of 10.30 m.
Static scheme of continous deck over the piers and supported on the abutments. Structures
in reinforced concrete. Foundation on piles.

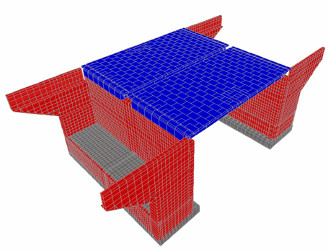

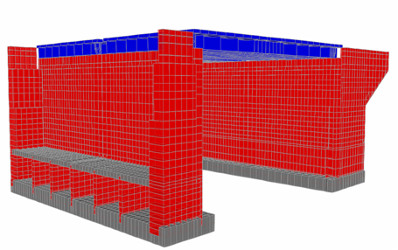

Erigba bridge
No. 1 span with a total length of 20.0 m. The bridge is organized
on two structural elements – two adjacent and symmetrical decks each 10.30 m wide. Static scheme
of fixed deck on the abutments. The frontal walls relative to each deck are
separated by a structural joint but have foundation in common. Structures in
reinforced concrete. Shallow foundations on rock.
Final design (2012-2013) for Contractors
Borini Prono & Co Nigeria Ltd -
